線性導軌
Linear guideways
總變形 δA（即滾動元件與硬化軌道（最低 58 HRC）連接的變形）可從以下圖表中推導出來。

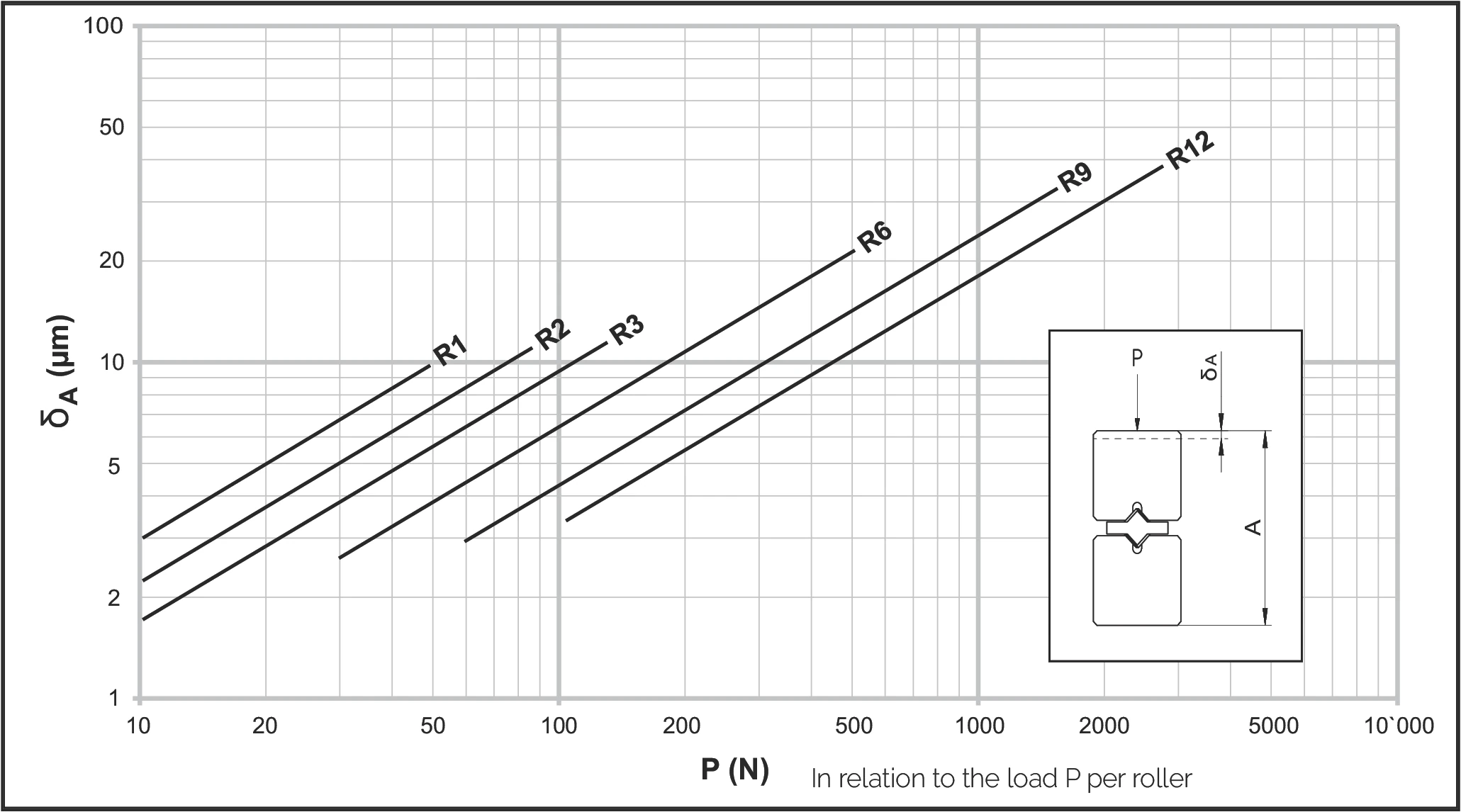

R 型線性導軌（滾子）的彈性變形
The elastic deformation of the linear guideways of type R with rollers
相對於每個滾子的負載 P (In relation to the load P per roller)

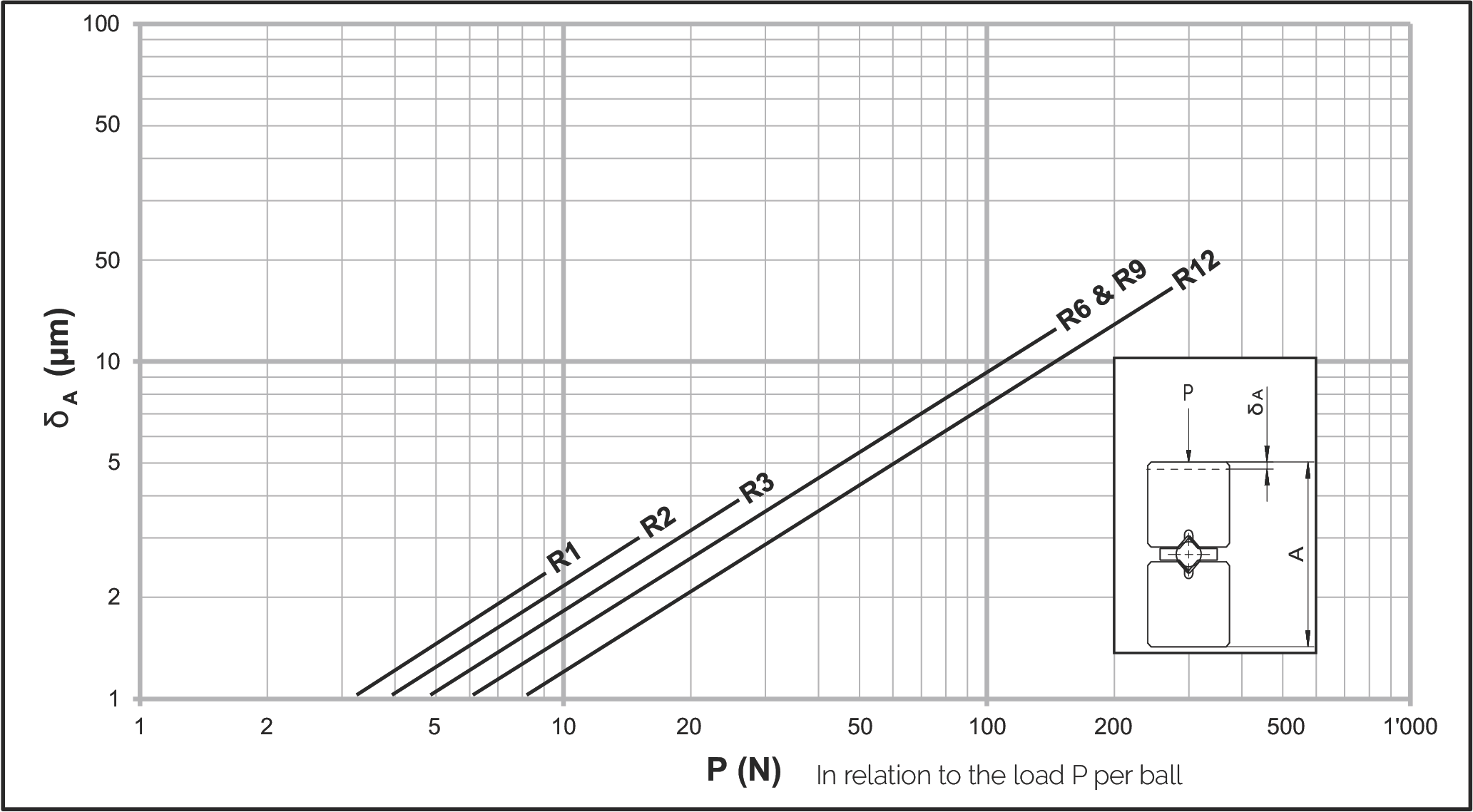

R 型線性導軌（滾珠）的彈性變形
The elastic deformation of the linear guideways of type R with balls
相對於每個滾珠的負載 P (In relation to the load P per ball)

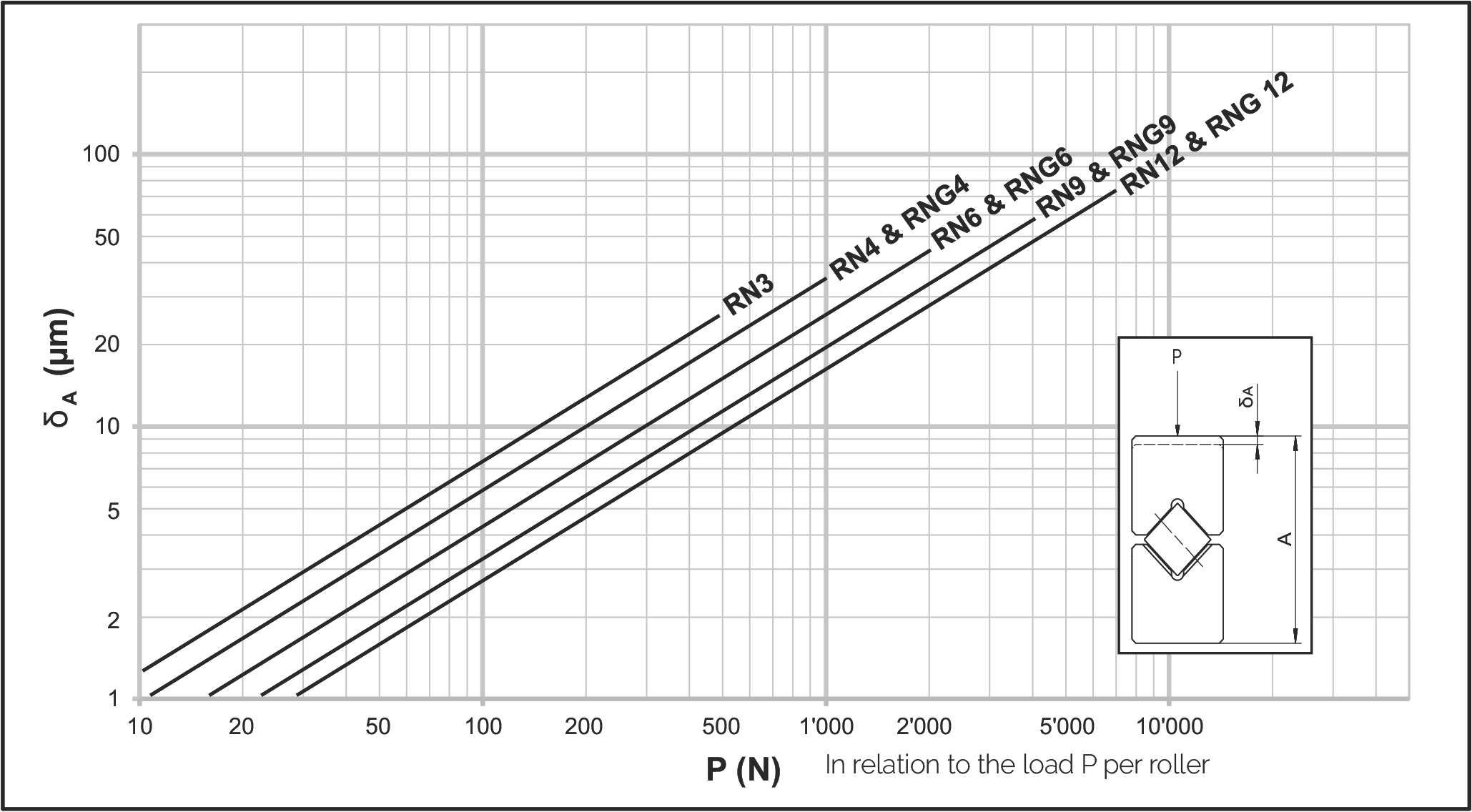

RN 和 RNG 型線性導軌的彈性變形
The elastic deformation of the linear guideways for type RN and RNG
相對於每個滾子的負載 P (In relation to the load P per roller)

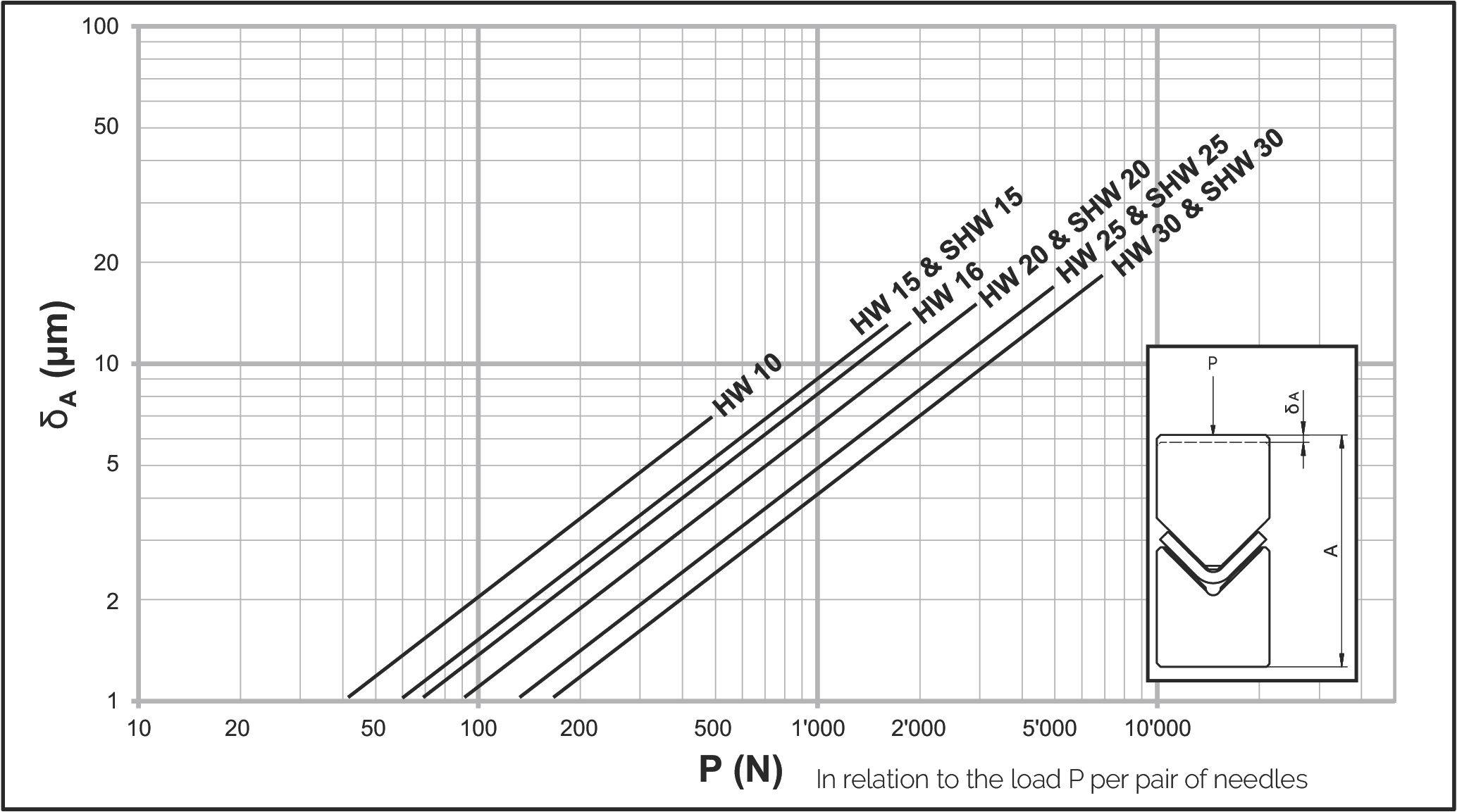

N/O 和 M/V 型線性導軌的彈性變形
The elastic deformation of the linear guideways of types N/O and M/V
使用以下類型的滑架時 (Upon use with the following types of cages)
相對於每對滾針的負載 P (In relation to the load P per pair of needles)
說明：
δA = 彈性變形 (µm)
P = 每個滾動元件的負載 (N)
HRC 58-62 = 標準軌道硬度範圍
