7.2.10 標準尺寸 MINIRAIL 的尺寸表、負載能力和力矩負載

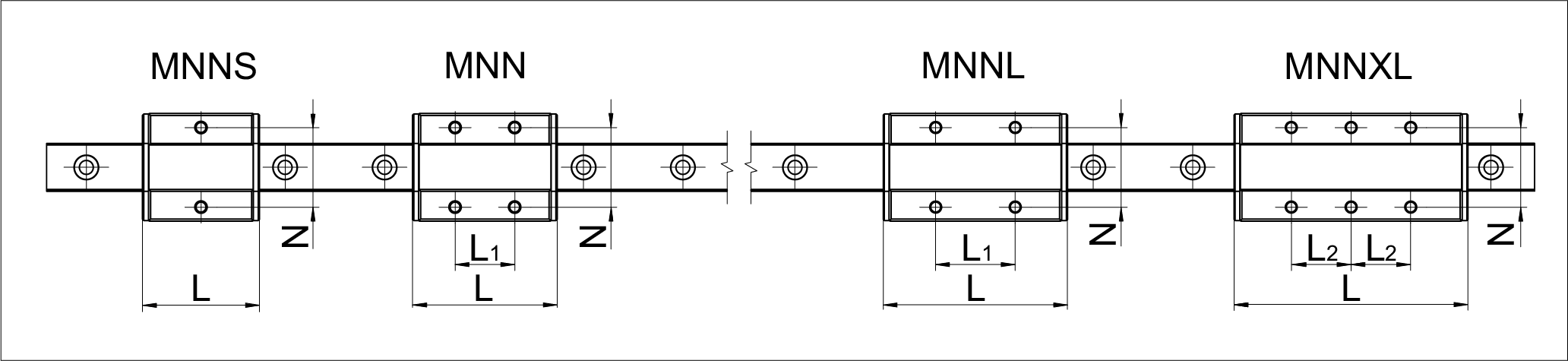

滑塊類型與安裝孔位置標註（MNNS、MNN、MNNL、MNNXL）

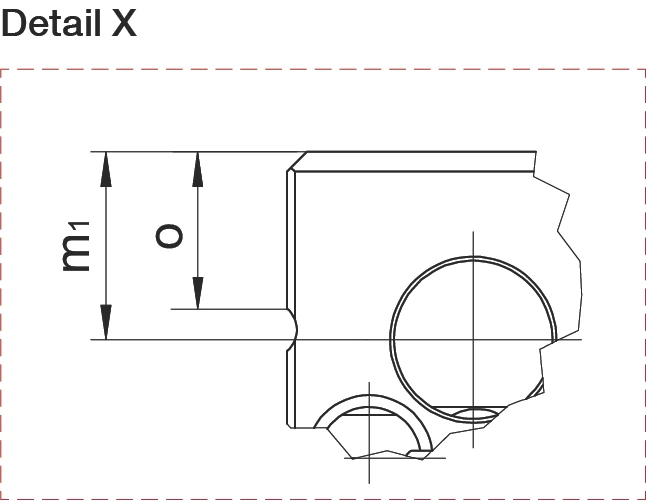

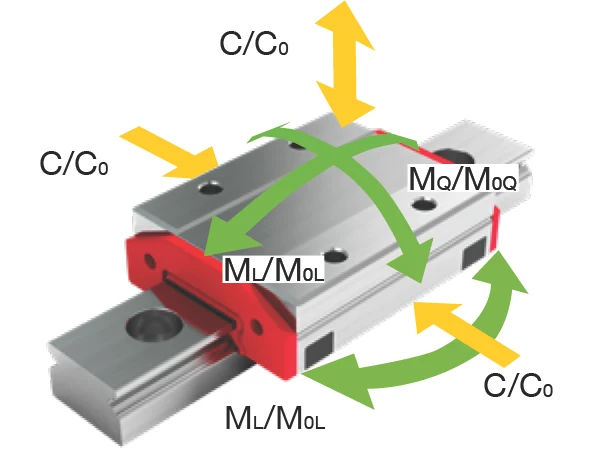

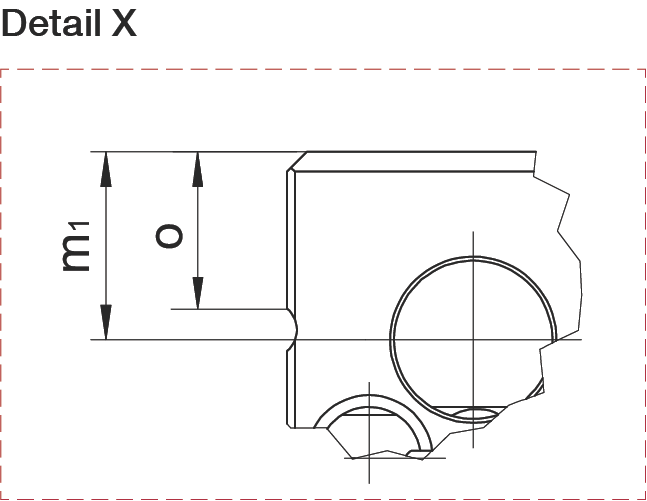

力矩負載方向示意圖（MQ/M0Q、ML/M0L、C/C0）
標準尺寸負載能力圖
標準尺寸負載能力圖
Standard size 7 和 9
| Name | Standard size 7 | Standard size 9 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Guideway | MNNS | MNN | MNNL | MNNXL | Guideway | MNNS | MNN | MNNL | MNNXL | ||
| Dimensions (mm) | A | - | 8 | 8 | 8 | 8 | - | 10 | 10 | 10 | 10 |
| B | - | 17 | 17 | 17 | 17 | - | 20 | 20 | 20 | 20 | |
| B1 | 7 | - | - | - | - | 9 | - | - | - | - | |
| B2 | - | 5 | 5 | 5 | 5 | - | 5.5 | 5.5 | 5.5 | 5.5 | |
| J | - | 6.5 | 6.5 | 6.5 | 6.5 | - | 8 | 8 | 8 | 8 | |
| J1 | 4.5 | - | - | - | - | 5.5 | - | - | - | - | |
| L | - | 18.6 | 24.6 | 32.1 | 41.1 | - | 22 | 32 | 40 | 50 | |
| L1 | - | - | 8 | 13 | 20 | - | - | 10 | 16 | 26 | |
| L2 | - | - | - | - | 10 | - | - | - | - | 13 | |
| L4 | 15 | - | - | - | - | 20 | - | - | - | - | |
| L5/L10 | 5 | - | - | - | - | 7.5 | - | - | - | - | |
| L6 | - | 16.1 | 22.1 | 29.6 | 38.6 | - | 19 | 29 | 37 | 47 | |
| N | - | 12 | 12 | 12 | 12 | - | 15 | 15 | 15 | 15 | |
| e | - | M2 | M2 | M2 | M2 | - | M3 | M3 | M3 | M3 | |
| f1 | 2.4 | - | - | - | - | 3.5 | - | - | - | - | |
| f2 | 4.2 | - | - | - | - | 6 | - | - | - | - | |
| g | - | 2.5 | 2.5 | 2.5 | 2.5 | - | 3 | 3 | 3 | 3 | |
| g2 | 2.2 | - | - | - | - | 2 | - | - | - | - | |
| m1 | - | 3.1 | 3.1 | 3.1 | 3.1 | - | 3.8 | 3.8 | 3.8 | 3.8 | |
| o | - | 2.5 | 2.5 | 2.5 | 2.5 | - | 3.1 | 3.1 | 3.1 | 3.1 | |
| Load capacity (N) | C0 | - | 935 | 1560 | 2340 | 3275 | - | 1385 | 2770 | 3880 | 5270 |
| C | - | 645 | 925 | 1230 | 1550 | - | 1040 | 1690 | 2140 | 2645 | |
| Torque (Nm) | M0Q | - | 3.4 | 5.6 | 8.4 | 11.8 | - | 6.5 | 12.9 | 18.1 | 24.5 |
| M0L | - | 1.6 | 4.3 | 9.3 | 18 | - | 2.8 | 10.2 | 19.4 | 35.1 | |
| MQ | - | 2.3 | 3.3 | 4.4 | 5.6 | - | 4.8 | 7.9 | 9.9 | 12.3 | |
| ML | - | 1.1 | 2.5 | 4.9 | 8.5 | - | 2.1 | 6.2 | 10.7 | 17.6 | |
| Weights guideway (g/m), carriage (g) | 216 | 9 | 13 | 18 | 23 | 309 | 16 | 24 | 31 | 40 | |
Standard size 12 和 15
| Name | Standard size 12 | Standard size 15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Guideway | MNNS | MNN | MNNL | MNNXL | Guideway | MNNS | MNN | MNNL | MNNXL | ||
| Dimensions (mm) | A | - | 13 | 13 | 13 | 13 | - | 16 | 16 | 16 | 16 |
| B | - | 27 | 27 | 27 | 27 | - | 32 | 32 | 32 | 32 | |
| B1 | 12 | - | - | - | - | 15 | - | - | - | - | |
| B2 | - | 7.5 | 7.5 | 7.5 | 7.5 | - | 8.5 | 8.5 | 8.5 | 8.5 | |
| J | - | 10 | 10 | 10 | 10 | - | 12 | 12 | 12 | 12 | |
| J1 | 7.5 | - | - | - | - | 9.5 | - | - | - | - | |
| L | - | 23.9 | 36.4 | 46.4 | 58.9 | - | 31.7 | 43.7 | 58.7 | 73.7 | |
| L1 | - | - | 15 | 20 | 30 | - | - | 20 | 25 | 40 | |
| L2 | - | - | - | - | 15 | - | - | - | - | 20 | |
| L4 | 25 | - | - | - | - | 40 | - | - | - | - | |
| L5/L10 | 10 | - | - | - | - | 15 | - | - | - | - | |
| L6 | - | 20.9 | 33.4 | 43.4 | 55.9 | - | 28.7 | 40.7 | 55.7 | 70.7 | |
| N | - | 20 | 20 | 20 | 20 | - | 25 | 25 | 25 | 25 | |
| e | - | M3 | M3 | M3 | M3 | - | M3 | M3 | M3 | M3 | |
| f1 | 3.5 | - | - | - | - | 3.5 | - | - | - | - | |
| f2 | 6 | - | - | - | - | 6 | - | - | - | - | |
| g | - | 3.5 | 3.5 | 3.5 | 3.5 | - | 4 | 4 | 4 | 4 | |
| g2 | 3 | - | - | - | - | 5 | - | - | - | - | |
| m1 | - | 4.75 | 4.75 | 4.75 | 4.75 | - | 5.55 | 5.55 | 5.55 | 5.55 | |
| o | - | 3.9 | 3.9 | 3.9 | 3.9 | - | 4.9 | 4.9 | 4.9 | 4.9 | |
| Load capacity (N) | C0 | - | 1735 | 3900 | 5630 | 7800 | - | 3120 | 5620 | 8740 | 11855 |
| C | - | 1420 | 2510 | 3240 | 4070 | - | 2435 | 3680 | 5000 | 6200 | |
| Torque (Nm) | M0Q | - | 10.6 | 23.8 | 34.4 | 47.6 | - | 23.7 | 42.7 | 66.4 | 90.1 |
| M0L | - | 3.6 | 16.3 | 32.9 | 61.8 | - | 9.4 | 28.1 | 65.5 | 118.6 | |
| MQ | - | 8.7 | 15.3 | 19.8 | 24.8 | - | 18.5 | 27.9 | 38.1 | 47.1 | |
| ML | - | 3 | 10.4 | 18.9 | 32.2 | - | 7.3 | 18.4 | 37.6 | 62 | |
| Weights guideway (g/m), carriage (g) | 598 | 29 | 47 | 63 | 81 | 996 | 56 | 81 | 114 | 146 | |
