7.2.11 加寬型 MINIRAIL 的尺寸表、負載能力和力矩負載

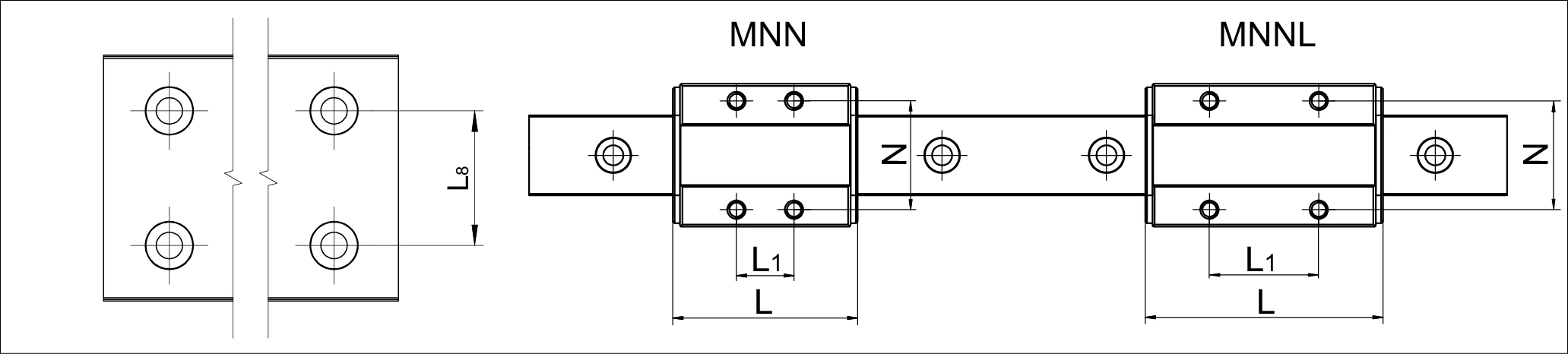

加寬型滑塊尺寸標註（MNN、MNNL）

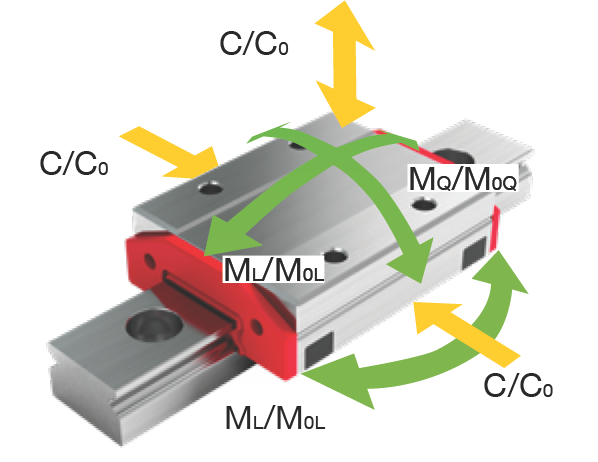

力矩負載方向示意圖（MQ/M0Q、ML/M0L、C/C0）

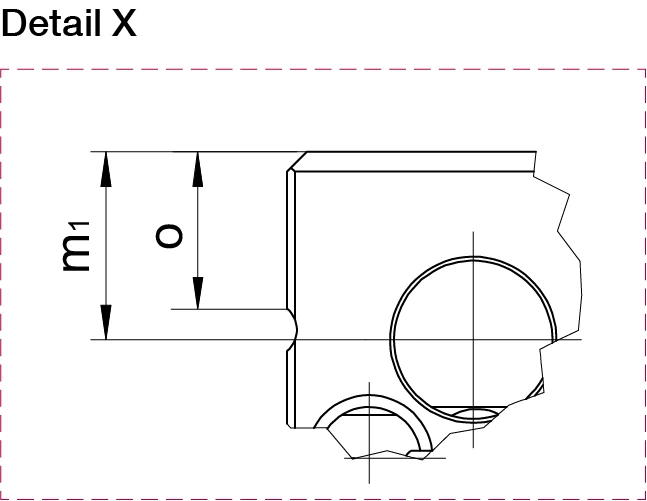

加寬型負載能力圖
加寬型負載能力圖
Wider width 14 和 18
| Wider width 14 | Wider width 18 | ||||||
|---|---|---|---|---|---|---|---|
| Guideway | MNN | MNNL | Guideway | MNN | MNNL | ||
| Dimensions (mm) | A | - | 9 | 9 | - | 12 | 12 |
| B | - | 25 | 25 | - | 30 | 30 | |
| B1 | 14 | - | - | 18 | - | - | |
| B2 | - | 5.5 | 5.5 | - | 6 | 6 | |
| J | - | 6.8 | 6.8 | - | 8.5 | 8.5 | |
| J1 | 5.2 | - | - | 7 | - | - | |
| L | - | 32.1 | 41.1 | - | 40 | 50 | |
| L1 | - | 10 | 19 | - | 12 | 24 | |
| L2 | - | - | - | - | - | - | |
| L4 | 30 | - | - | 30 | - | - | |
| L5/L10 | 10 | - | - | 10 | - | - | |
| L6 | - | 29.6 | 38.6 | - | 37 | 47 | |
| L8 | - | - | - | - | - | - | |
| N | - | 19 | 19 | - | 21 | 21 | |
| e | - | M3 | M3 | - | M3 | M3 | |
| f1 | 3.5 | - | - | 3.5 | - | - | |
| f2 | 6 | - | - | 6 | - | - | |
| g | - | 2.8 | 2.8 | - | 3 | 3 | |
| g2 | 2 | - | - | 2.5 | - | - | |
| m1 | - | 3.3 | 3.3 | - | 4.3 | 4.3 | |
| o | - | 2.2 | 2.2 | - | 3.1 | 3.1 | |
| Load capacity (N) | C0 | - | 2340 | 3275 | - | 3880 | 5270 |
| C | - | 1230 | 1550 | - | 2140 | 2645 | |
| Torque (Nm) | M0Q | - | 16.6 | 23.3 | - | 35.5 | 48.2 |
| M0L | - | 9.3 | 18 | - | 19.4 | 35.1 | |
| MQ | - | 8.7 | 11 | - | 19.6 | 24.2 | |
| ML | - | 4.9 | 8.5 | - | 10.7 | 17.6 | |
| Weights guideway (g/m), carriage (g) | 518 | 25 | 33 | 915 | 47 | 60 | |
Wider width 24 和 42
| Wider width 24 | Wider width 42 | ||||||
|---|---|---|---|---|---|---|---|
| Guideway | MNN | MNNL | Guideway | MNN | MNNL | ||
| Dimensions (mm) | A | - | 14 | 14 | - | 16 | 16 |
| B | - | 40 | 40 | - | 60 | 60 | |
| B1 | 24 | - | - | 42 | - | - | |
| B2 | - | 8 | 8 | - | 9 | 9 | |
| J | - | 10 | 10 | - | 12 | 12 | |
| J1 | 8.5 | - | - | 9.5 | - | - | |
| L | - | 46.4 | 58.9 | - | 55.7 | 73.7 | |
| L1 | - | 15 | 28 | - | 20 | 35 | |
| L2 | - | - | - | - | - | - | |
| L4 | 40 | - | - | 40 | - | - | |
| L5/L10 | 15 | - | - | 15 | - | - | |
| L6 | - | 43.4 | 55.9 | - | 52.7 | 70.7 | |
| L8 | - | - | - | 23 | - | - | |
| N | - | 28 | 28 | - | 45 | 45 | |
| e | - | M3 | M3 | - | M4 | M4 | |
| f1 | 4.5 | - | - | 4.5 | - | - | |
| f2 | 8 | - | - | 8 | - | - | |
| g | - | 3.5 | 3.5 | - | 4.5 | 4.5 | |
| g2 | 4 | - | - | 5 | - | - | |
| m1 | - | 4.75 | 4.75 | - | 5.5 | 5.5 | |
| o | - | 3.9 | 3.9 | - | 4.9 | 4.9 | |
| Load capacity (N) | C0 | - | 5630 | 7800 | - | 8110 | 11855 |
| C | - | 3240 | 4070 | - | 4750 | 6200 | |
| Torque (Nm) | M0Q | - | 68.2 | 94.4 | - | 171.2 | 250.2 |
| M0L | - | 32.9 | 61.8 | - | 56.8 | 118.6 | |
| MQ | - | 39.2 | 49.3 | - | 100.3 | 130.8 | |
| ML | - | 18.9 | 32.2 | - | 33.3 | 62 | |
| Weights guideway (g/m), carriage (g) | 1476 | 84 | 109 | 2828 | 169 | 231 | |
